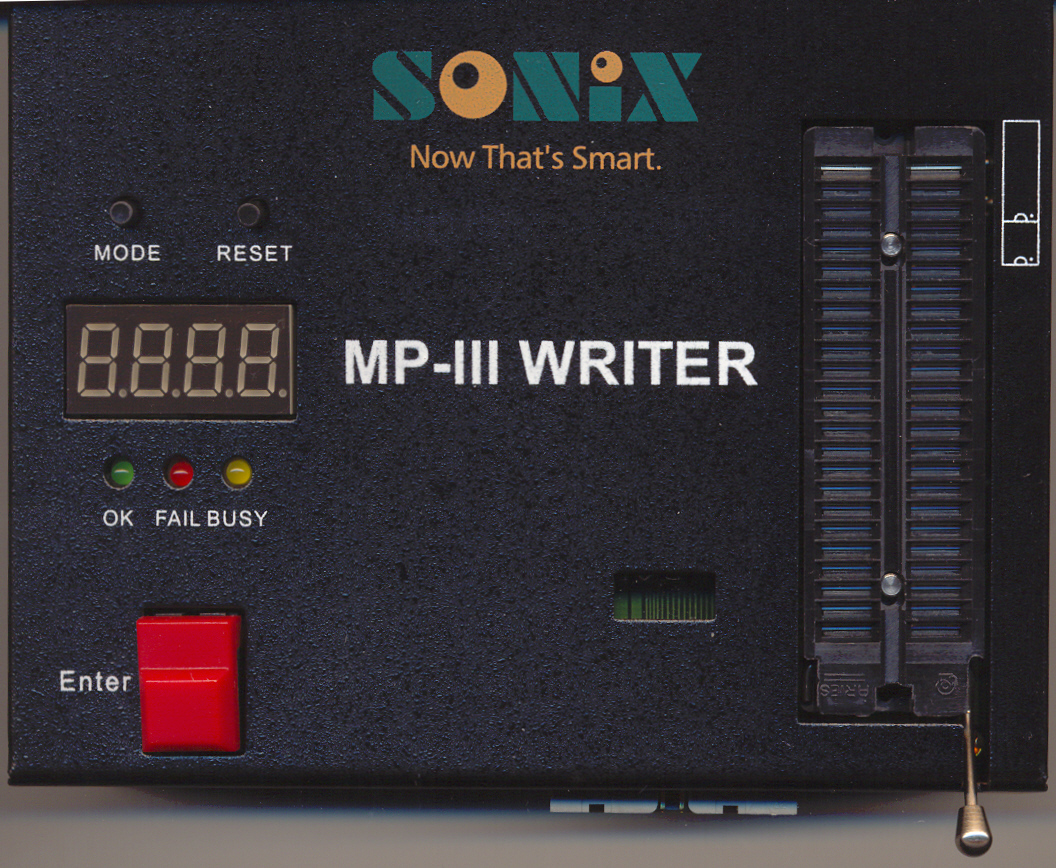

(MPIII Writer)

Purchase Part No：MP3-XXXX 。(XXXX represents MCU model, the chip model presented with Writer Transition Board shipment.。)
For instance: MP3_1602B means Writer Transition Board presents with one chip 1602B at the shipment.

Function：

1.MPIII Writer only support:

SN8P1917/1919/1927/1929
SN8P2201/2202/2203/2204
SN8P2212/2213/22121
SN8P2234/2236/2238
SN8P2308
SN8P2501A/2501B/2522
SN8P2602A/2602B/2603A/2604/2604A/2606/2608/26042/26042A
SN8P2611/2612/2613/2614/2622/2624
SN8P2704A/2705A/2706A/2707A/2708A
SN8P2711/2711A/2714/2715
SN8P27142/27143
SN8P2722
SN8P2735
SN8P2754/2755/2758
SN8P2807/2808
SN8F2251/2253/2255/22511/22521/22531/2271/22721
SN8PC13

2.Applied for mass programming.

3.It's convenient to connect Full Speed USB 1.1 port with PC and then update the writer, connect programming chip or download programming code.

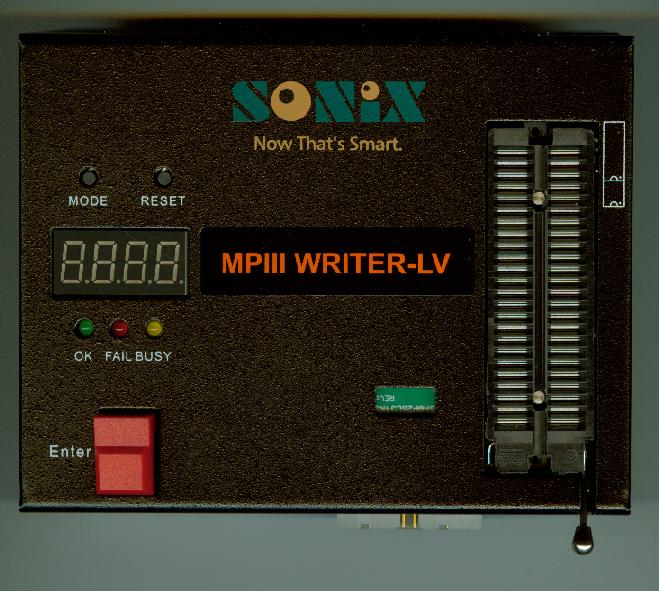

(MPIII Writer-lv)

1. MPIII Writer - LV only support:

SN8P26L31/26L32/26L321/26L34/26L38
SN8PC20

2.Applied for mass programming.

3.It's convenient to connect Full Speed USB 1.1 port with PC and then update the writer, connect programming chip or download programming code.

Note:
1.It's pre-requisite to plug correct MCU ICE Transition Board or Writer Transition Board into MPIII Writer before programming.

2.If choose with ICE Transition Board, connect the corresponding  MCU ICE Transition Board to MPIII Writer via 20pin  parallel cable and then place MCU on the Text Tool of ICE Transition Board before programming.

3.Choose Writer Transition Board:

A.
IC pin number is not less than 48pin:
Plug the correct MCU Writer Transition Board into MPIII Writer and place MCU on the Text Tool of MPIII Writer before programming.

B.
IC pin number exceeds 48pin:
Connect the correct MCU Writer Transition Board to MPIII Writer via 20pin parallel cable and then  place  MCU on the Writer Transition Board Socket. Thus it's ready for programming.

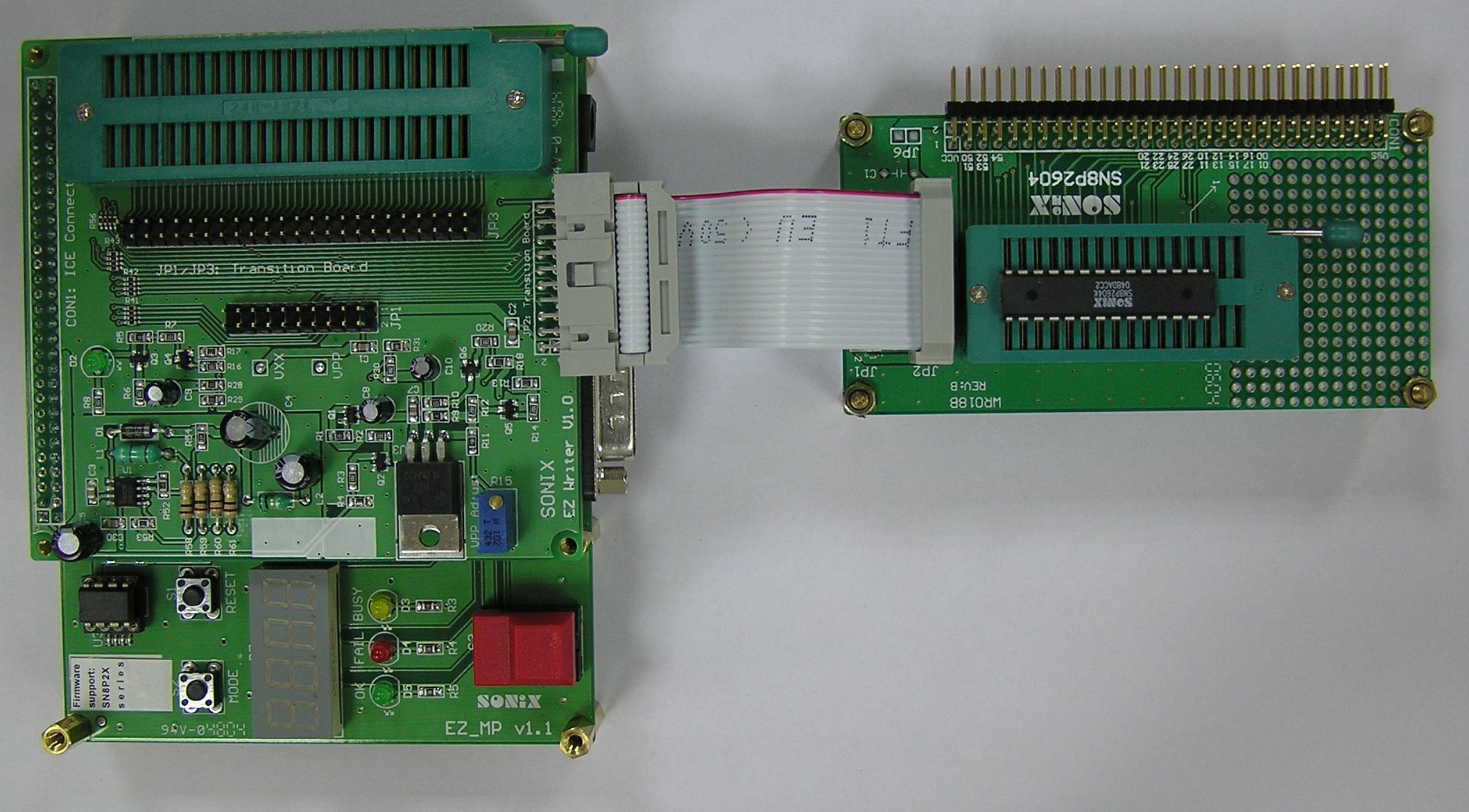

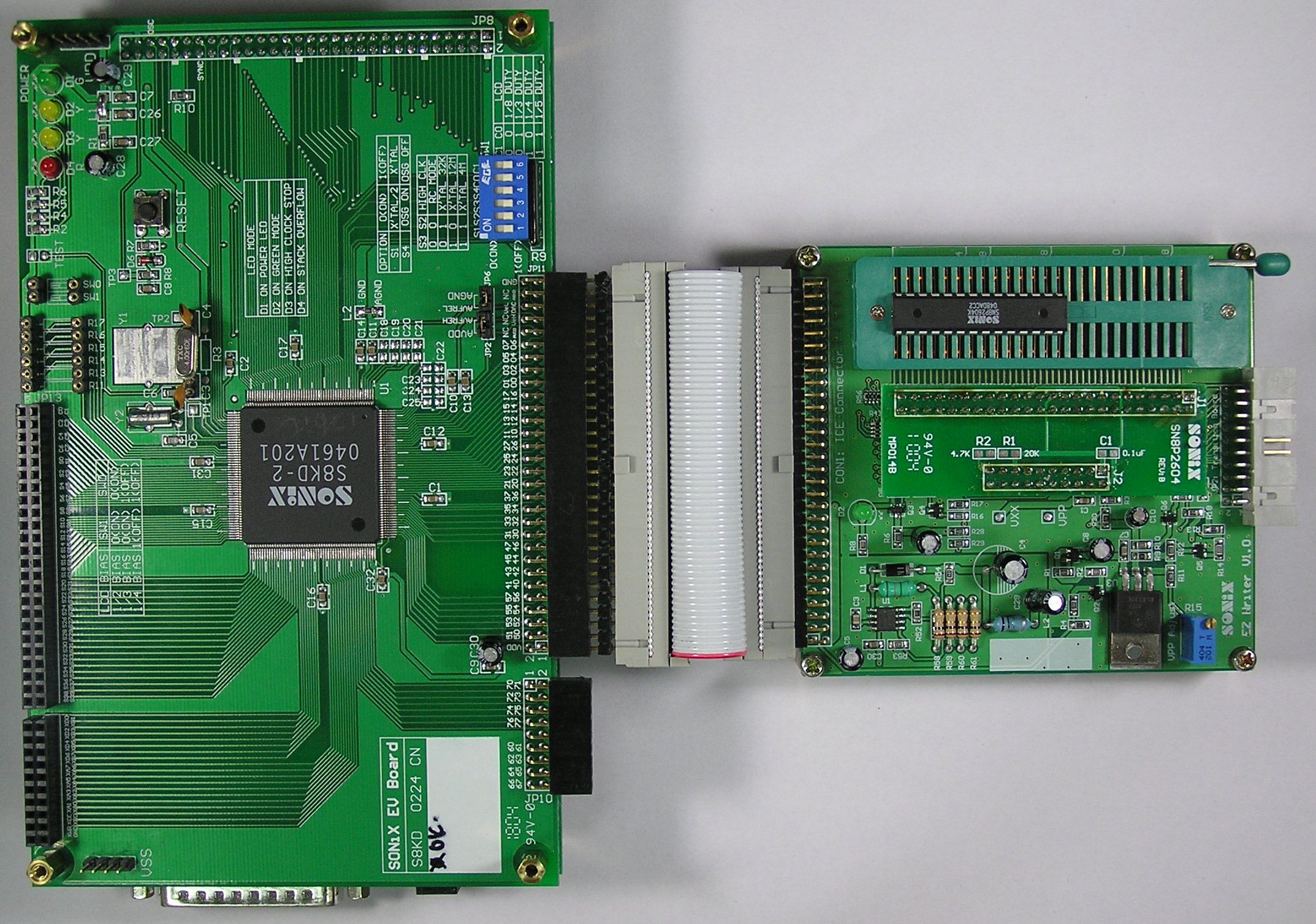

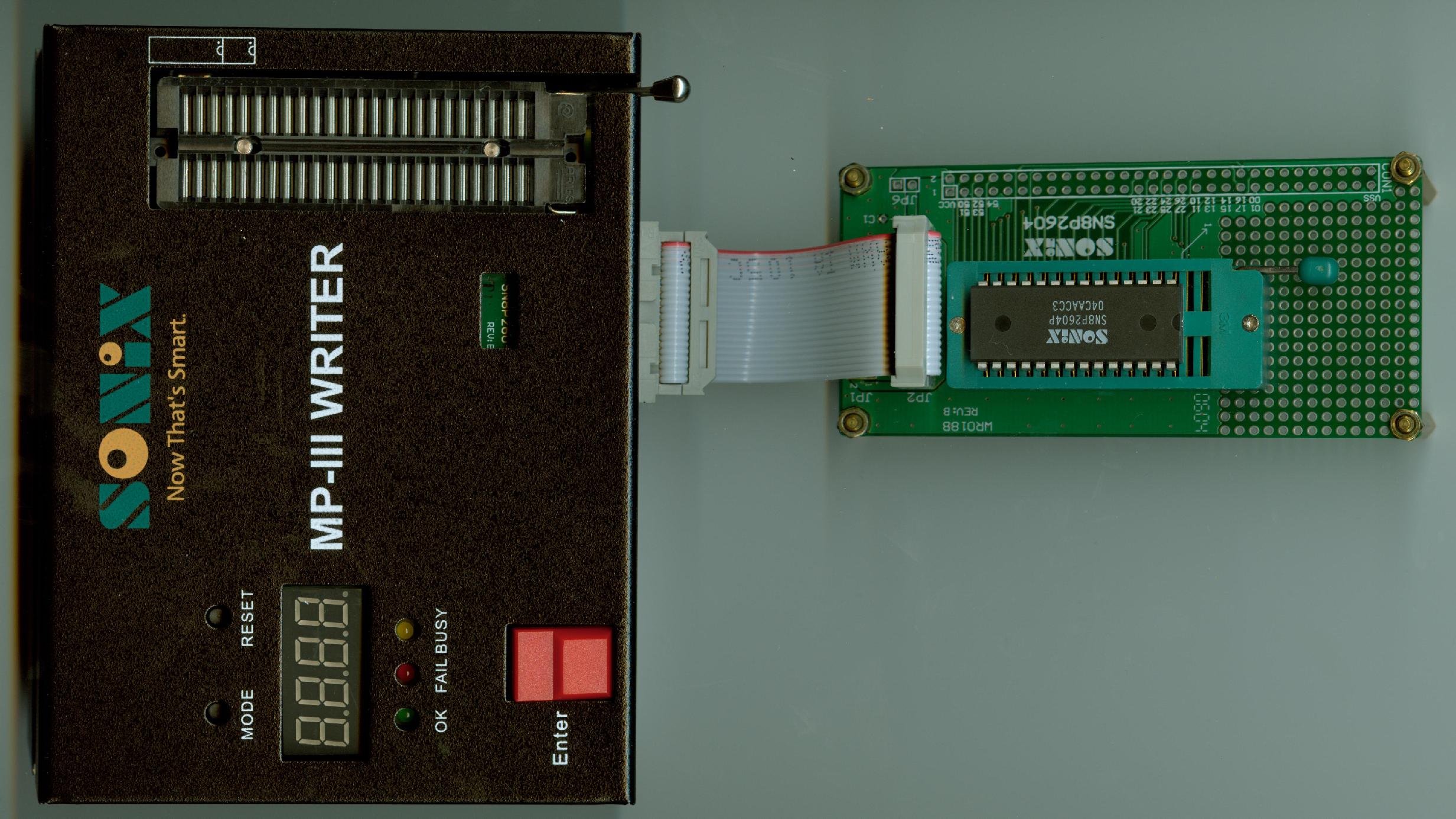

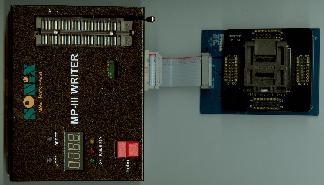

(Choose ICE Transition Board  programming connection chart)

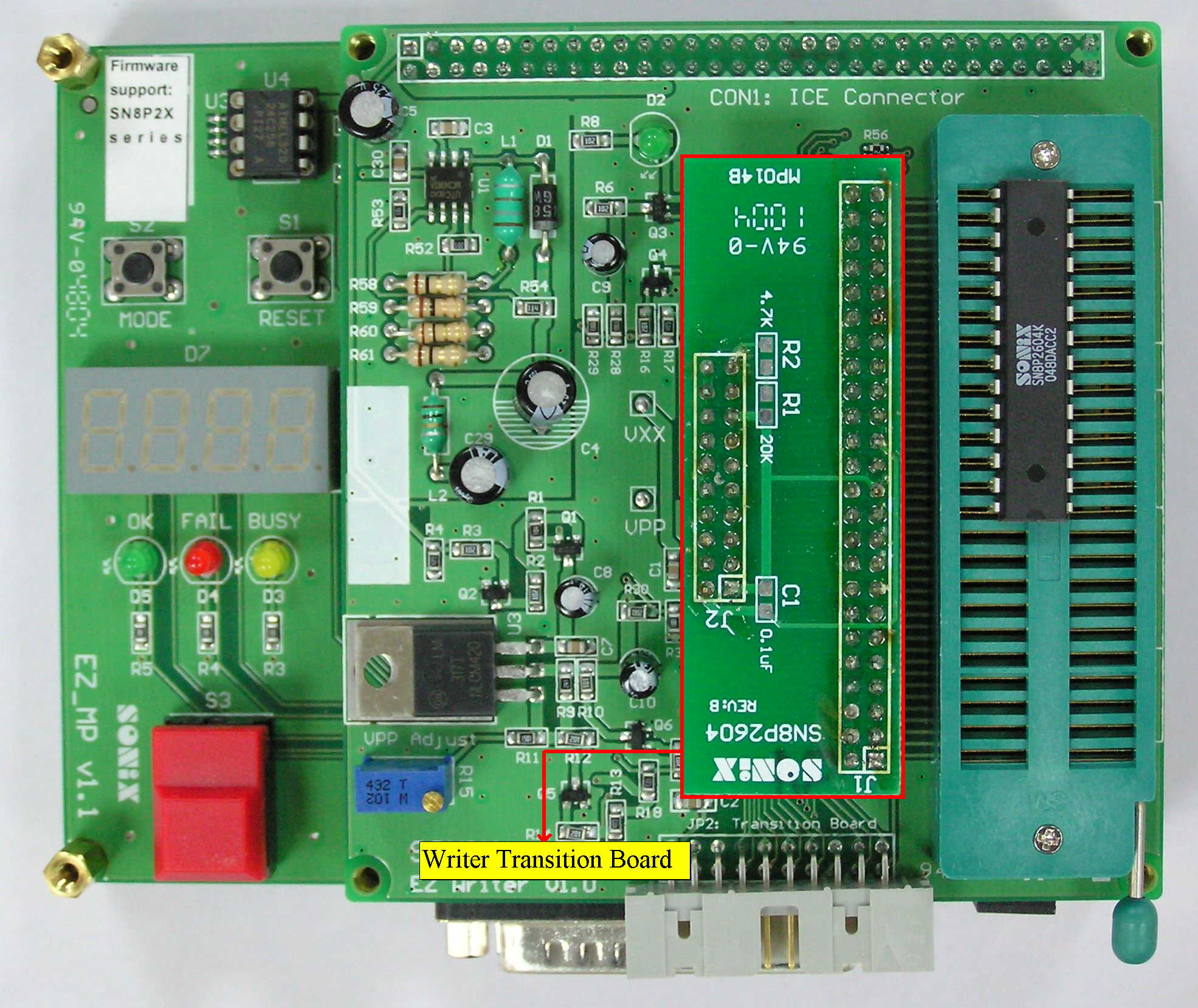

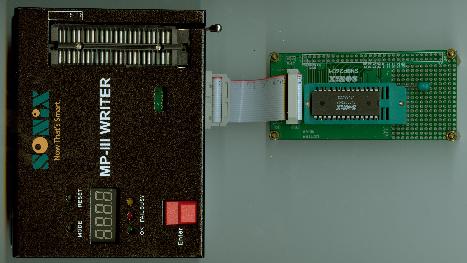

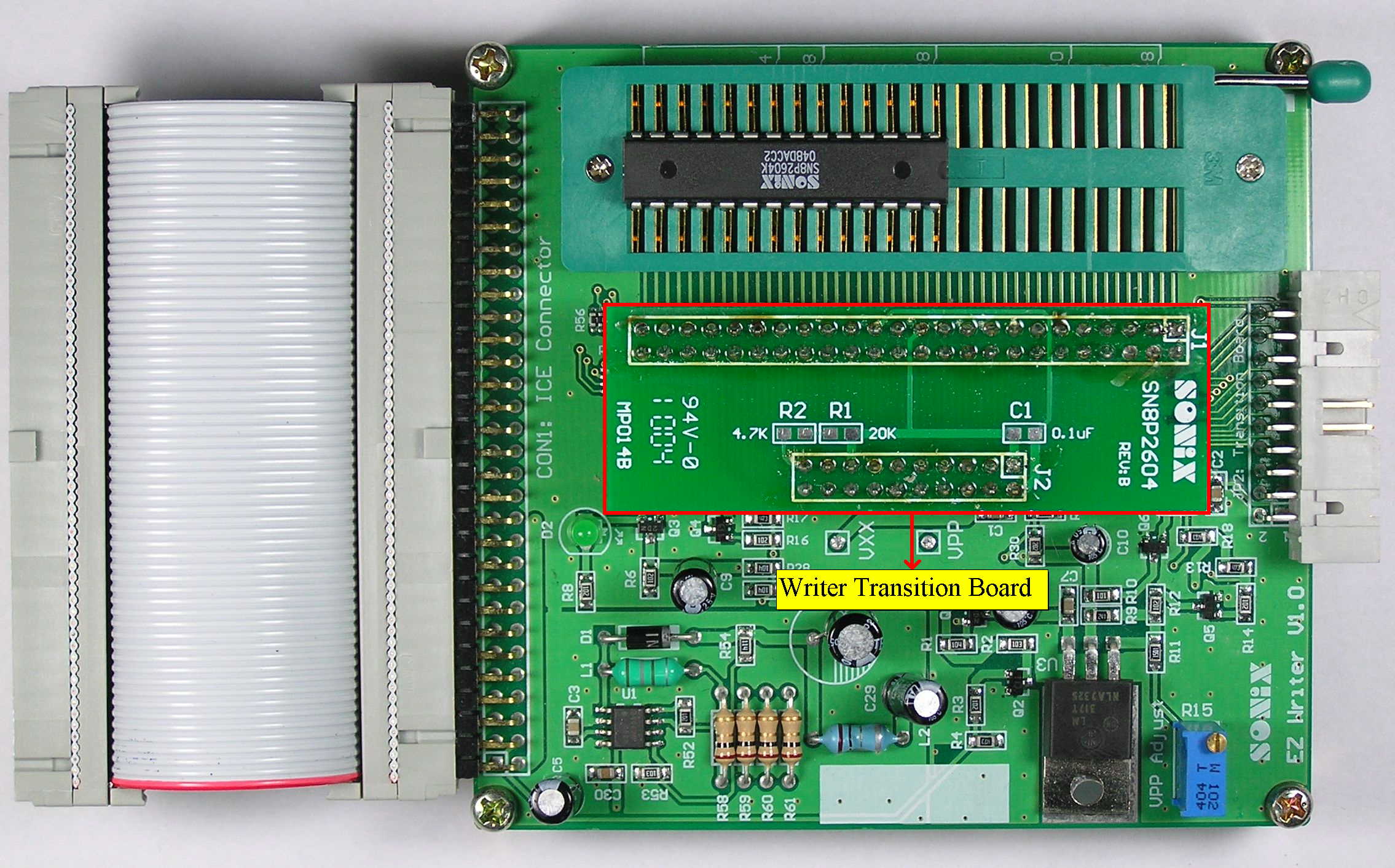

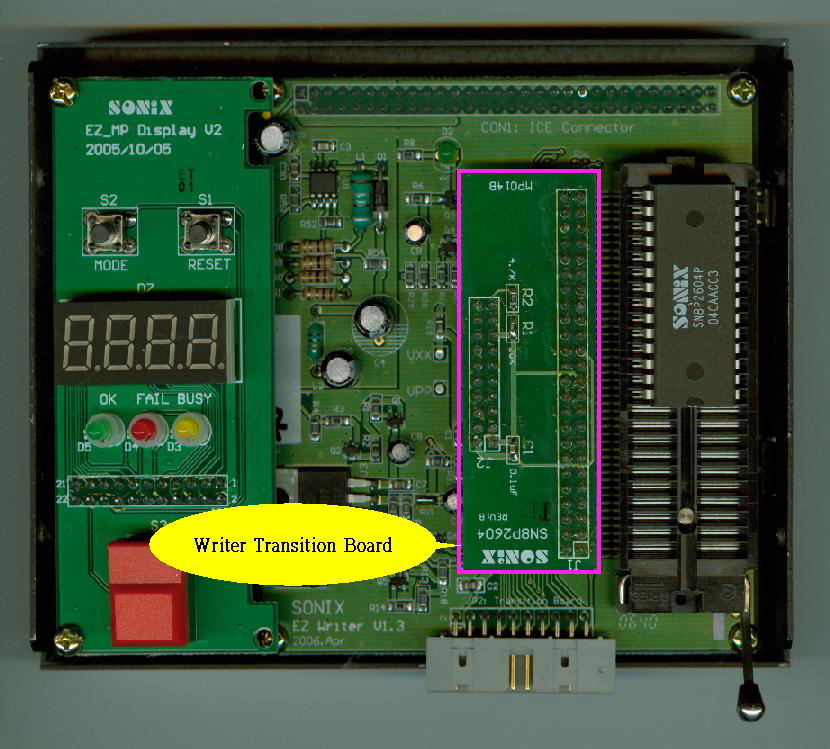

(Writer Transition Board programming connection chart)

(IC pin number is not less than 48pin)

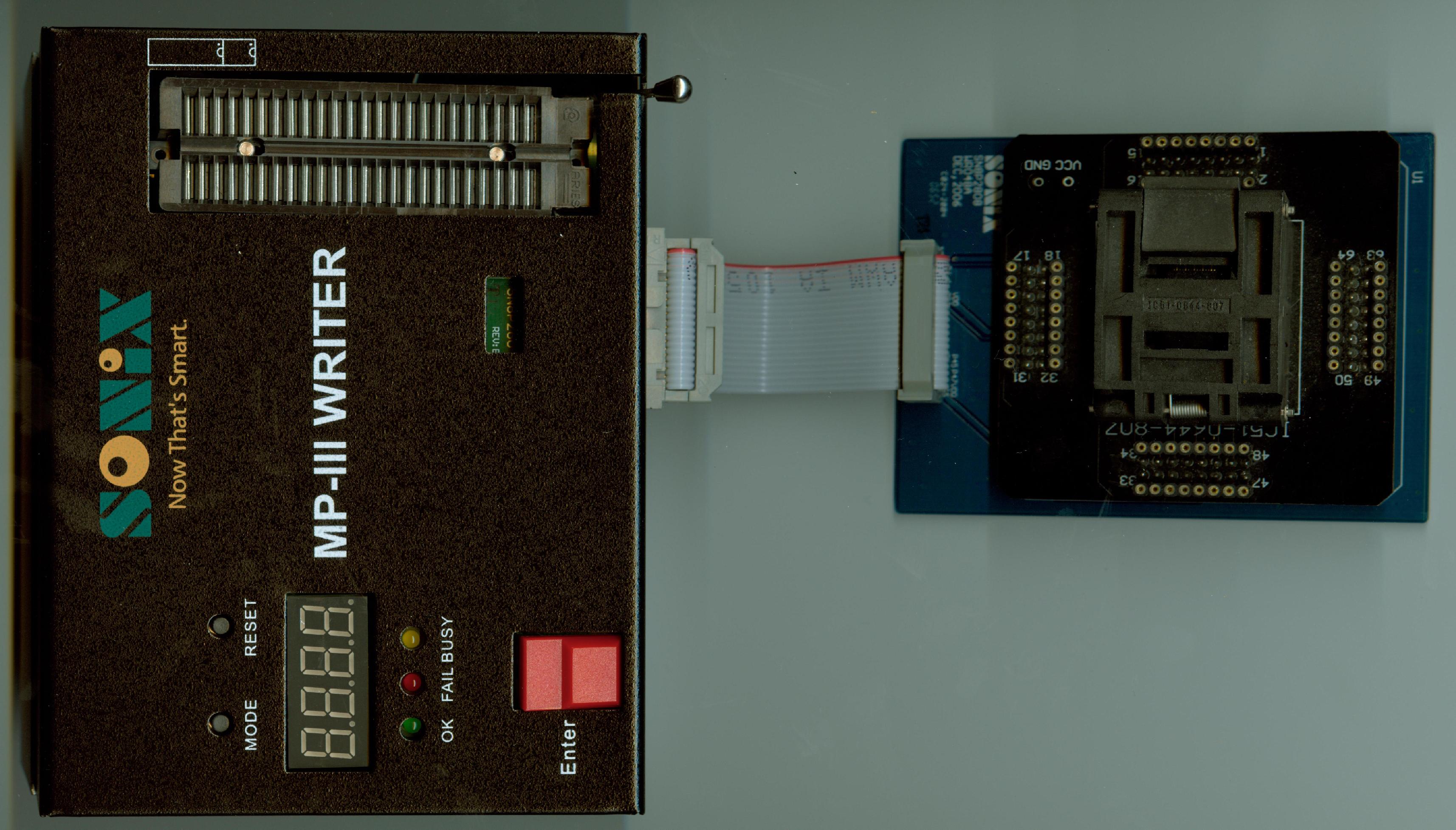

(IC pin number exceeds 48pin)

Accessory:

20PIN Cable

7.5V DC Power Adaptor

Power Cord

CORE

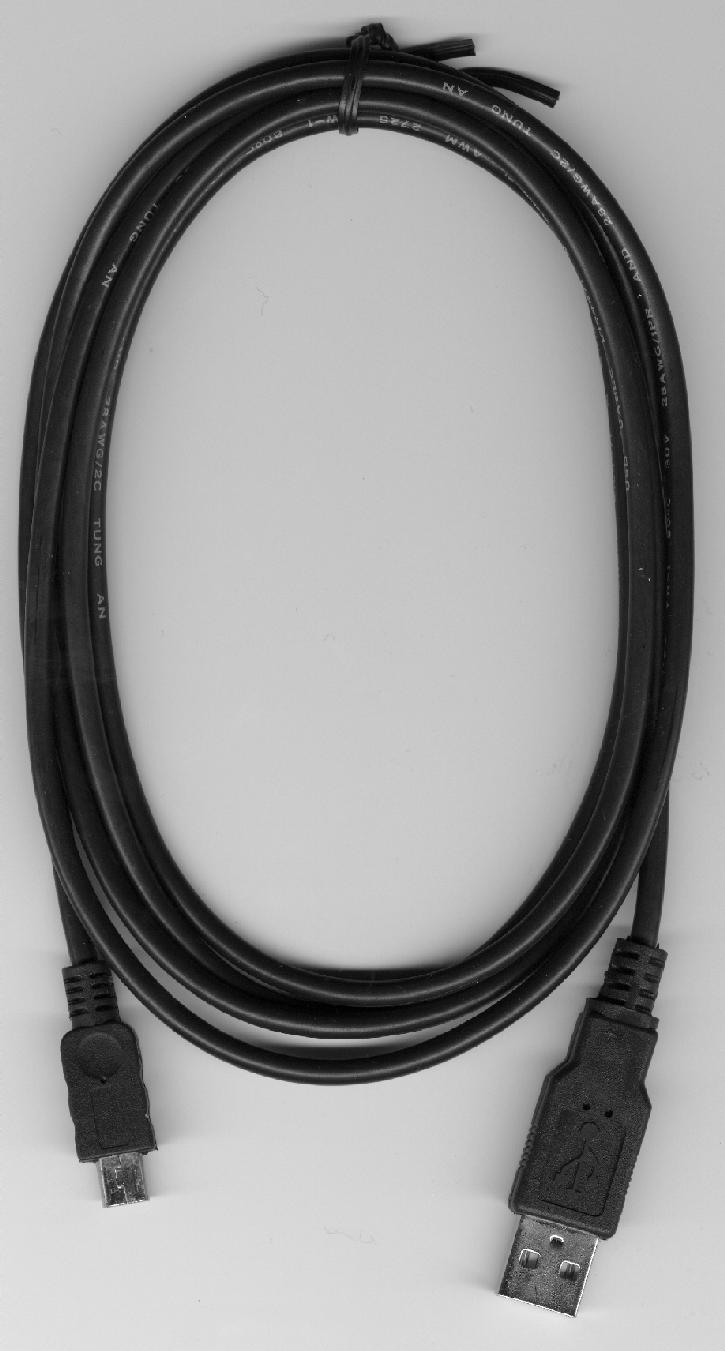

USB Cable

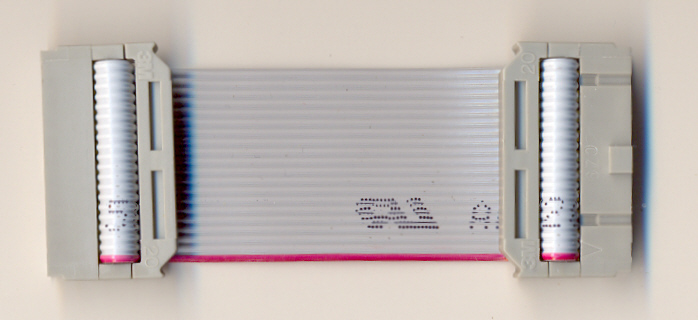

(20PIN Cable)

(7.5V DC Power Adaptor)

(Power Cord)

(CORE)

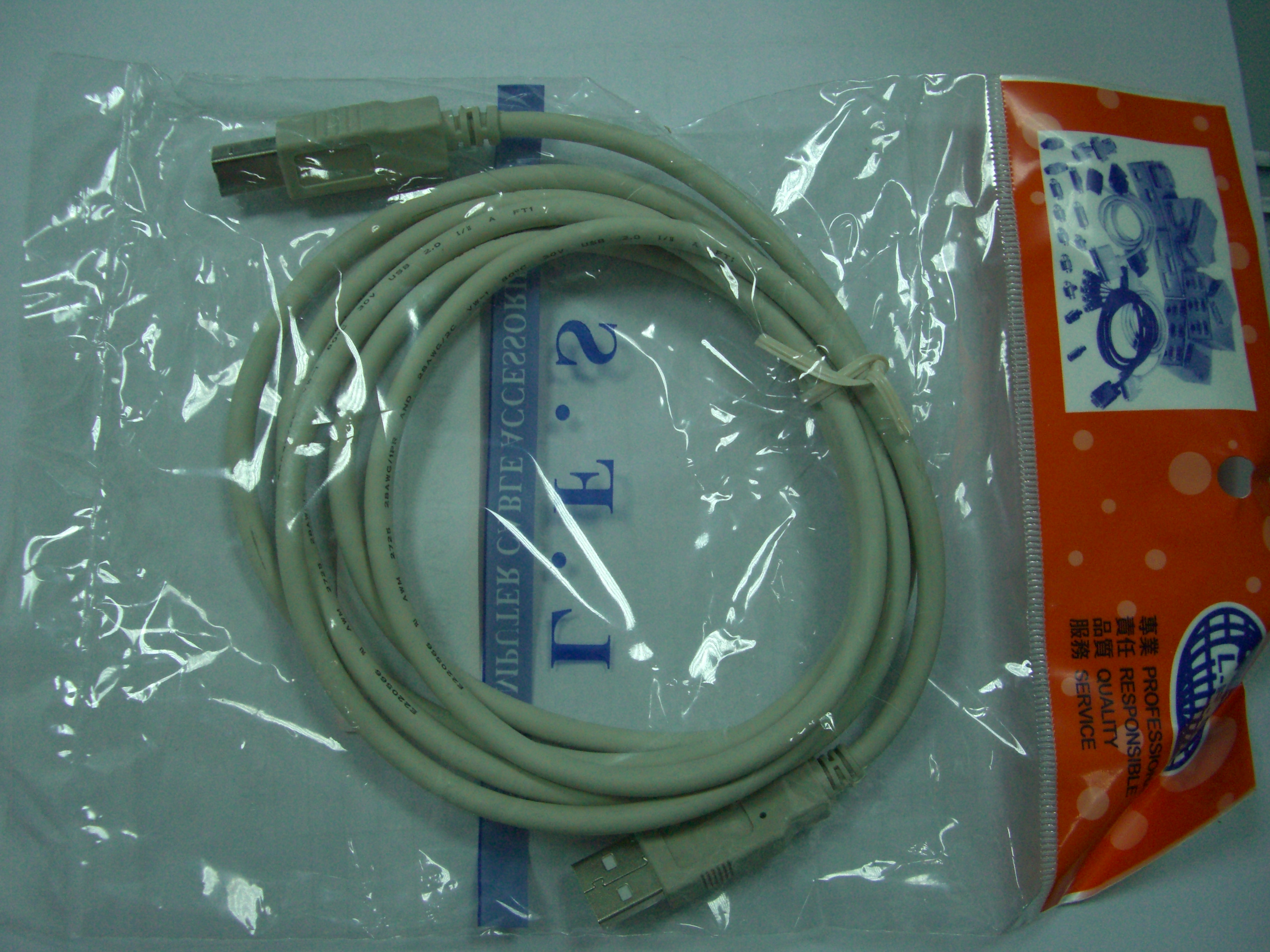

(USB Cable)

Purchase Part No：MP3-LV-XXXX。(XXXX represents MCU model, the chip model presented with Writer Transition Board shipment.。)
For instance: MP3-LV-26L34means Writer Transition Board presents with one chip 26L34 at the shipment.

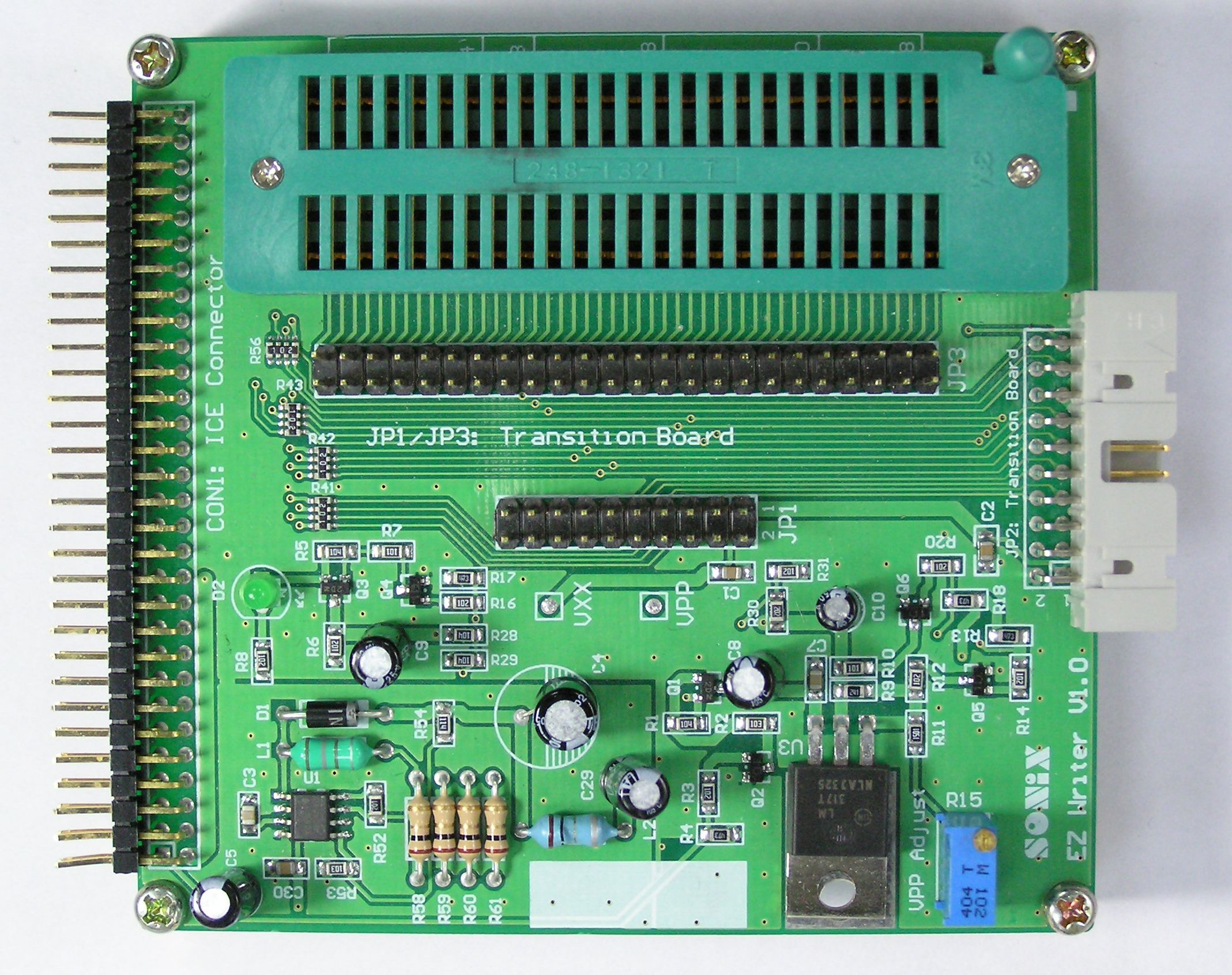

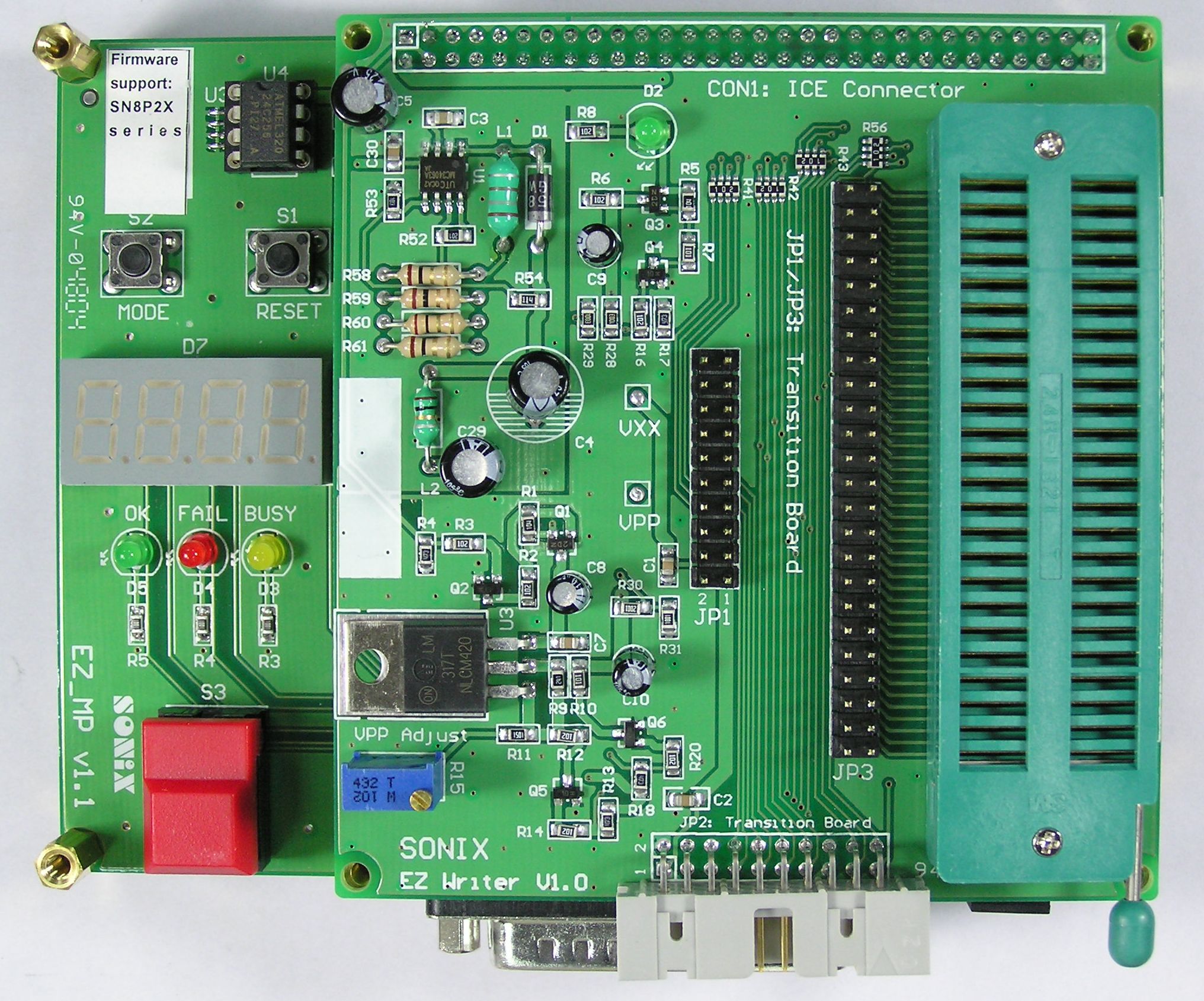

(MP Writer)

1. Only support SN8P1602B、SN8P170X、SN8P1808、SN8P1829、SN8P190X。

2. Applied for mass programming。

Note:
1.It's pre-requisite to plug correct MCU ICE Transition Board or Writer Transition Board into MP Easy Writer before programming.

2.If choose with ICE Transition Board, connect the corresponding  MCU ICE Transition Board to MP Easy Writer via 20pin  parallel cable and then place MCU on the Text Tool of ICE Transition Board before programming.

3.Choose Writer Transition Board:

A.
IC pin number is not less than 48pin:
Plug the correct MCU Writer Transition Board into MP Easy Writer and place MCU on the Text Tool of MP Easy Writer before programming.

B.
IC pin number exceeds 48pin：
Connect the correct MCU Writer Transition Board to MP Easy Writer via 20pin parallel cable and then  place  MCU on the Writer Transition Board Socket. Thus it's ready for programming.

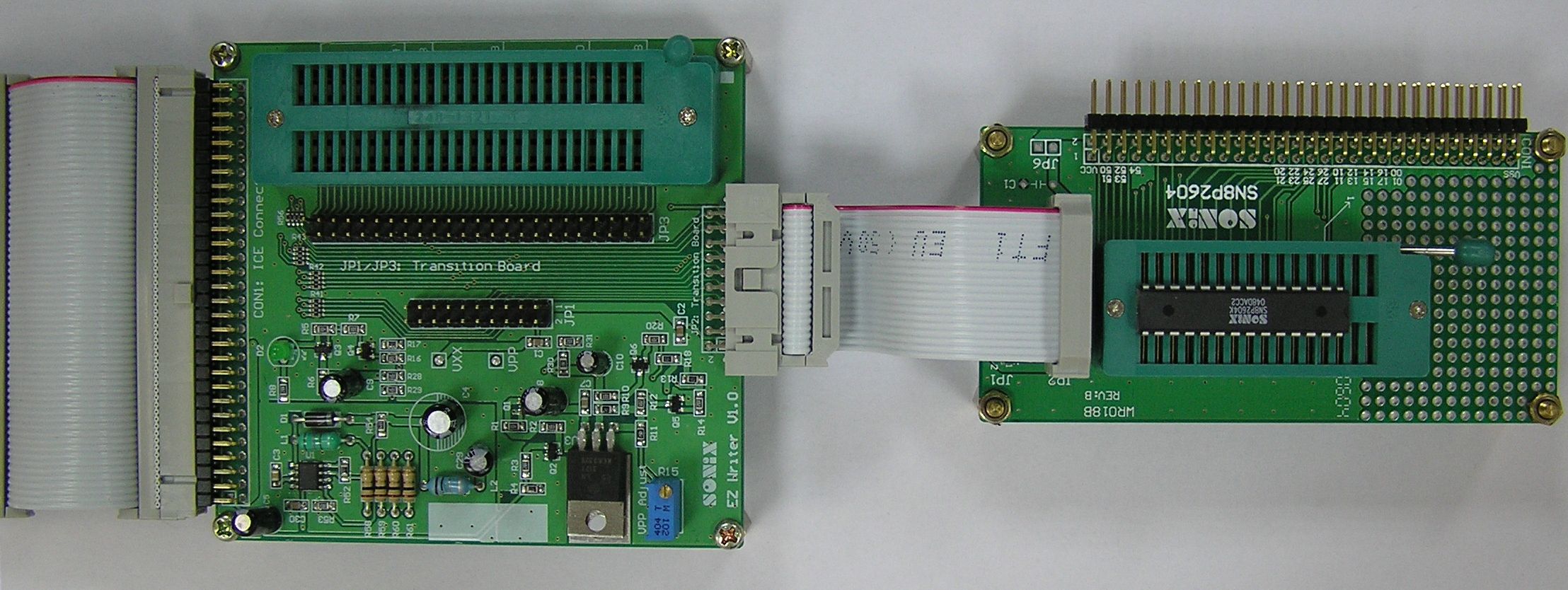

(Choose ICE Transition Board  programming connection chart)

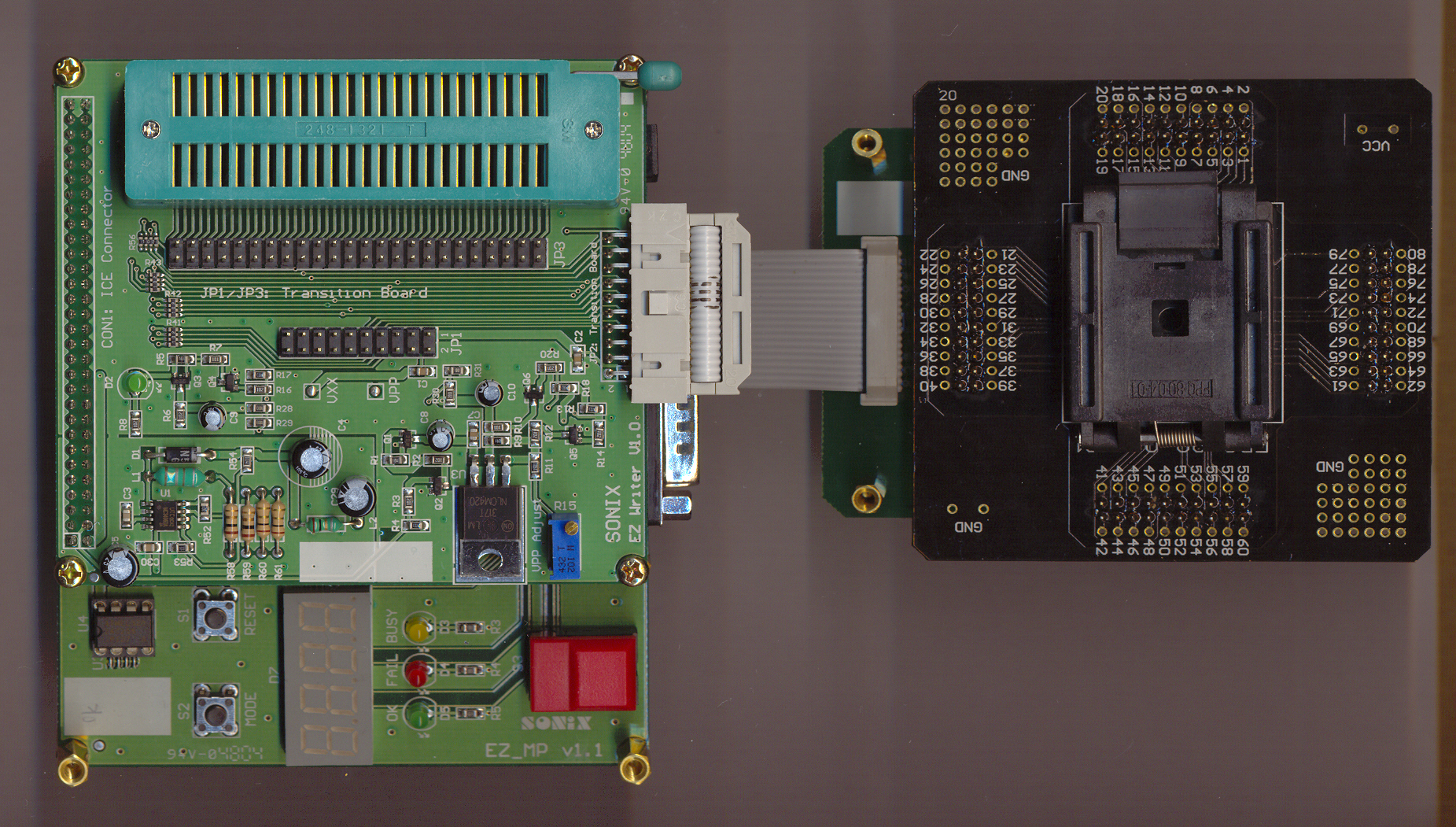

(Writer Transition Board programming connection chart)

(IC pin number is not less than 48pin)

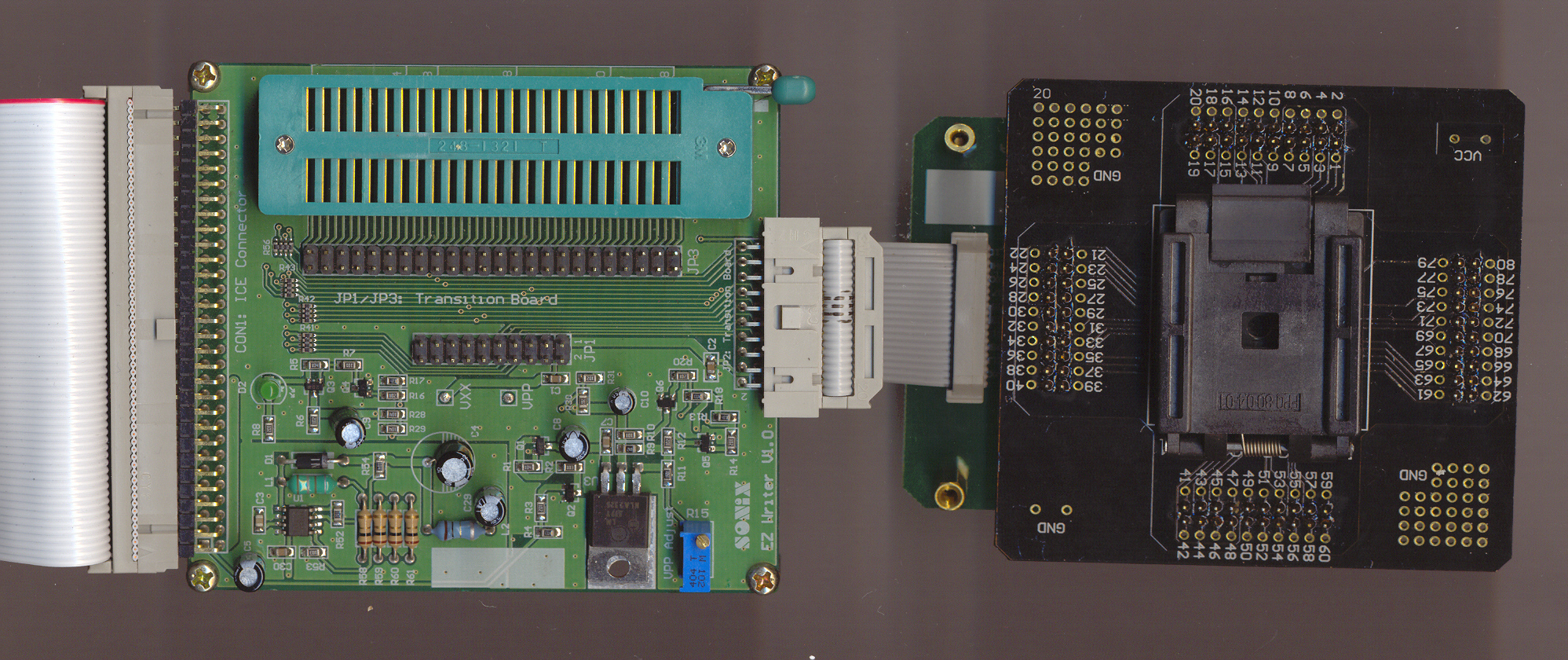

(IC pin number exceeds 48pin)

Accessory：

20PIN Cable

7.5V DC Power Adaptor

Power Cord

CORE

LPT1 Parallel Cable

(20PIN Cable)

(7.5V DC Power Adaptor)

(Power Cord)

(CORE)

(LPT1 Parallel Cable)

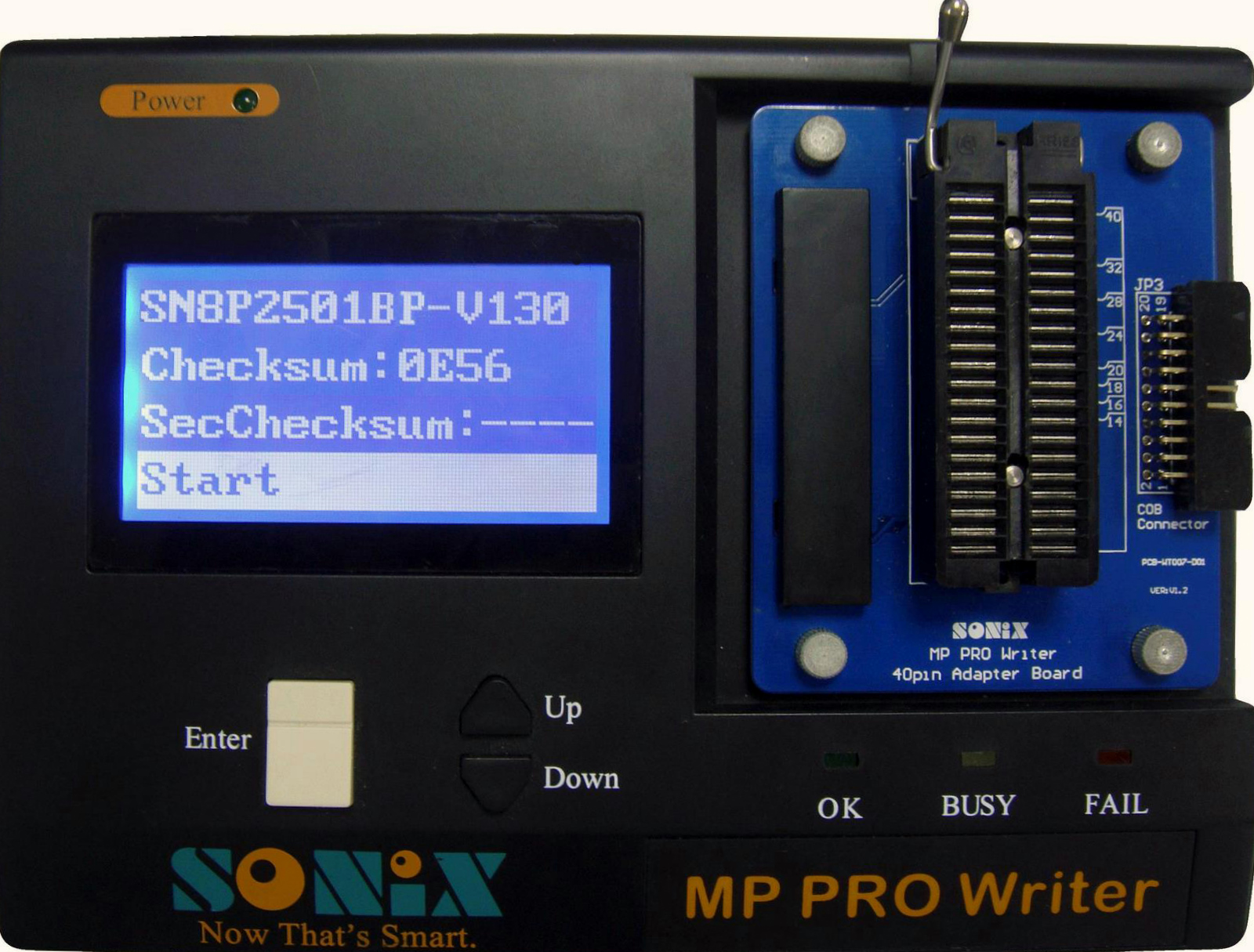

MP2200_V14F_D2D1(For SN8P2200 series)

Function：

• Support part NO.：

  SN8P1xxx Series MCU only support：SN8P1602B/1829/190x/191x/192x/1937

  Other part No. ,whether low voltage or Flash type MCU both can support

  Support on-line and off-line program functions, both can be suitable for
  engineering development and mass production programming used.

Note：

Adapter board use selection：

IC pin number is less than 40pin： Before programming must setup the 40 PIN Adapter board to MP PRO first, then select chip name and SN8 on the PC software

IC pin number are between 40 and 48(48 PIN included):
Before programming must setup the 48 PIN Adapter board to MP PRO first, and insert the same part number of transition board, then select chip name and SN8 on the PC software.

IC pin number is more than 48PIN：
Before programming must setup the 48 PIN Adapter board to MP PRO first, and connect adapter board and Transition board via the 20pin cable, then select chip name and SN8 on the PC software.

If the fail rate of programming is too high or the code can not be programmed, please solder a 0.1uF capacitor corresponding to chip’s VDD and GND on the Text Tool or socket.

If the program with socket, socket can be soldered directly on it.

The capacitor must be removed after programming and it can avoid programming other types to cause next error.

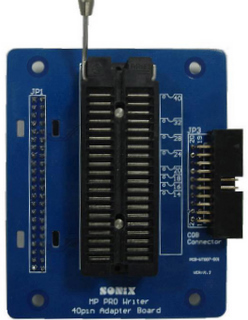

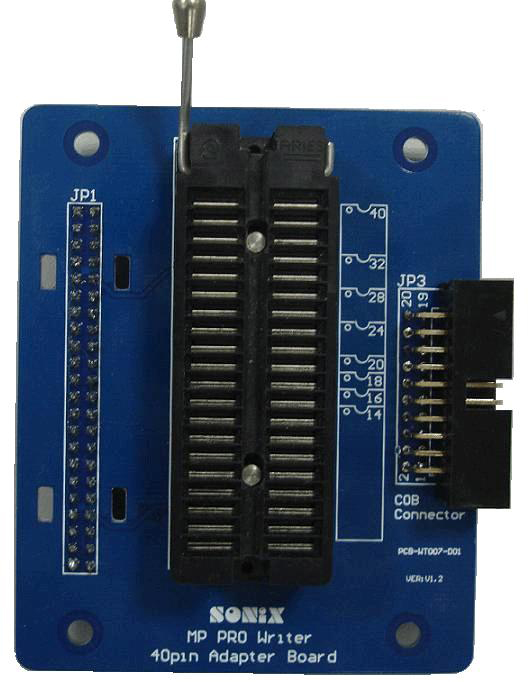

(40 PIN Adapter board)

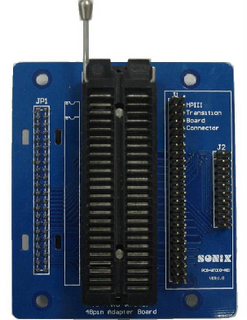

(48 PIN Adapter board-Optional))

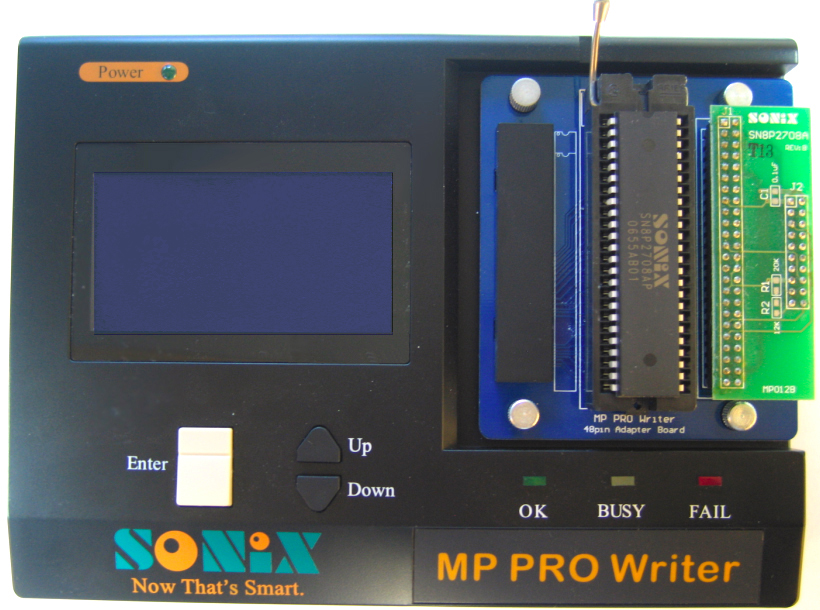

(The connection diagram of 44 &48 IC pin)

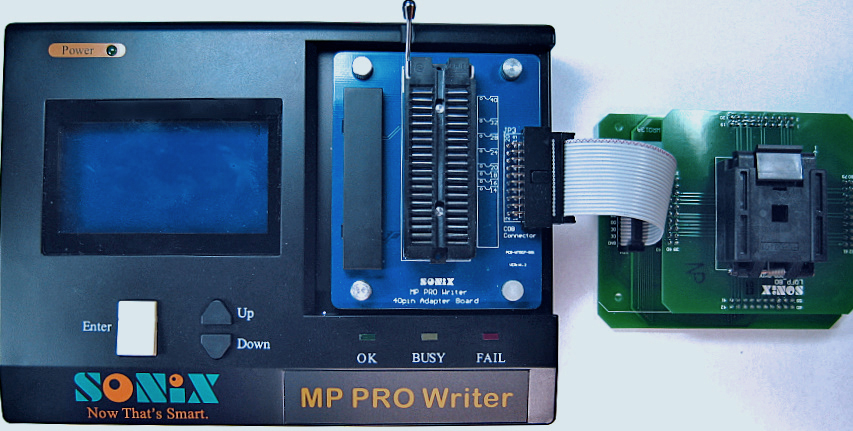

(The connection diagram of IC pin larger than 48 pin)

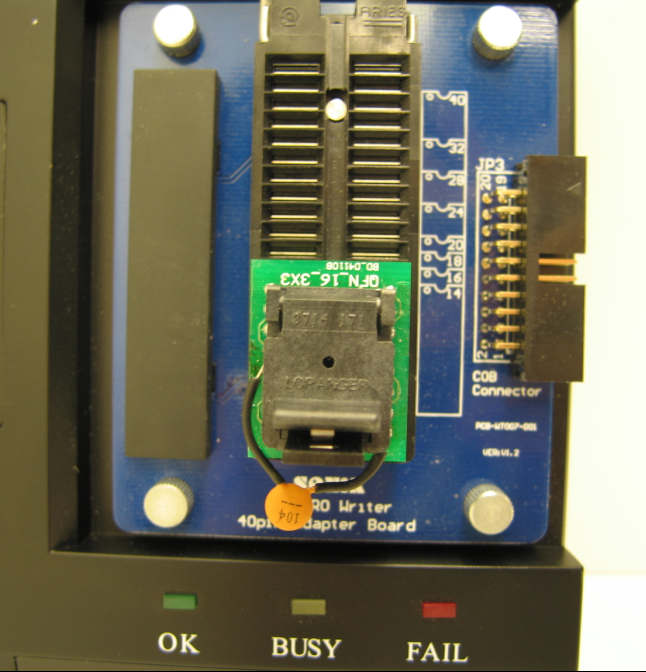

(Solder 0.1uF capacitance to VDD&GND)

20PIN Cable

18V DC Power Adaptor

USB Cable

(20PIN Cable)

(18V DC Power Adaptor)

(USB Cable)

Download Easy Writer manual：
MP PRO Writer User's Manual V1.1 (Traditional Chinese)
MP PRO Writer User's Manual V1.1 (English)

MP PRO Writer latest PC software ：

Download：MP PRO Writer v2.04
