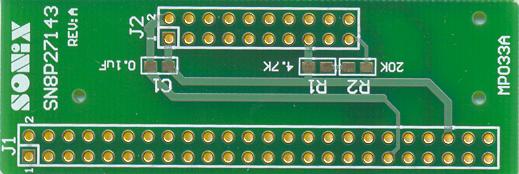

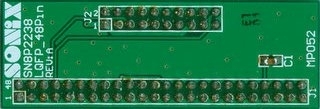

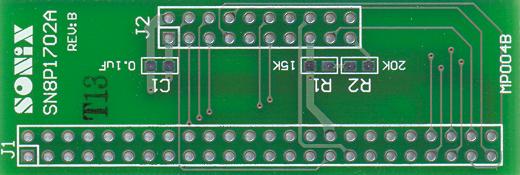

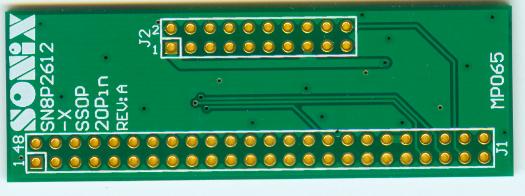

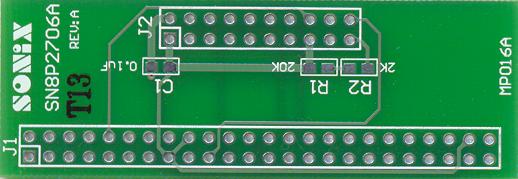

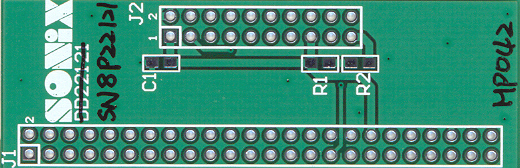

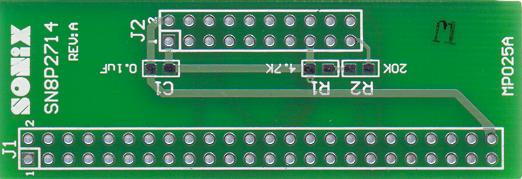

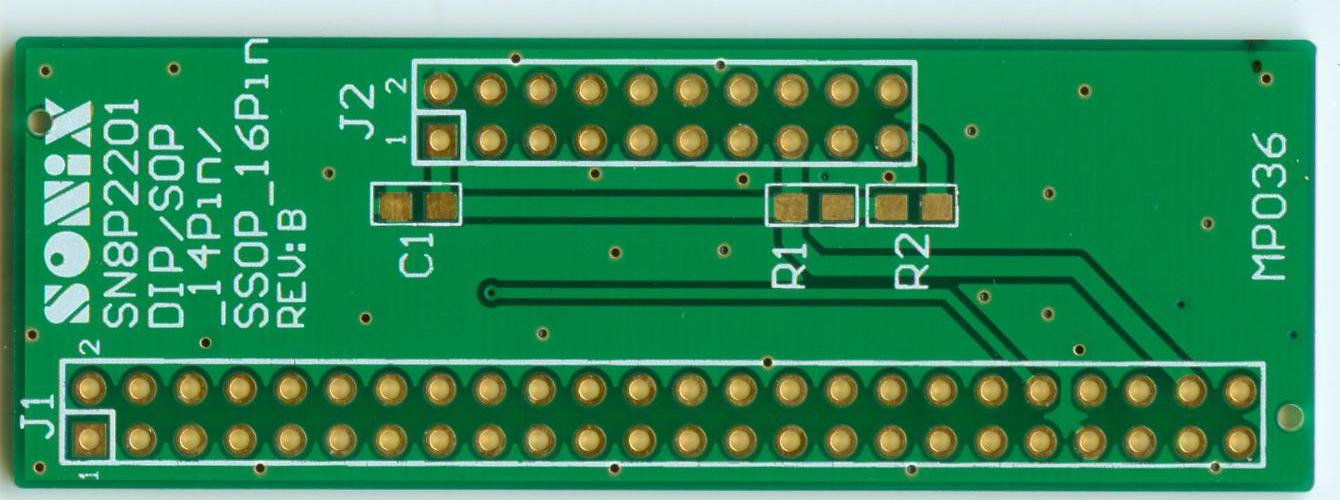

SONIX MCU Development Tools- OTP Writer Transition Board
Function：

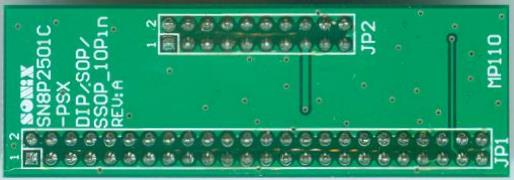

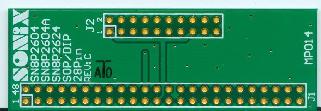

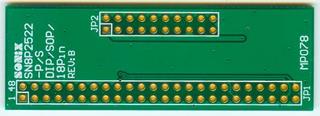

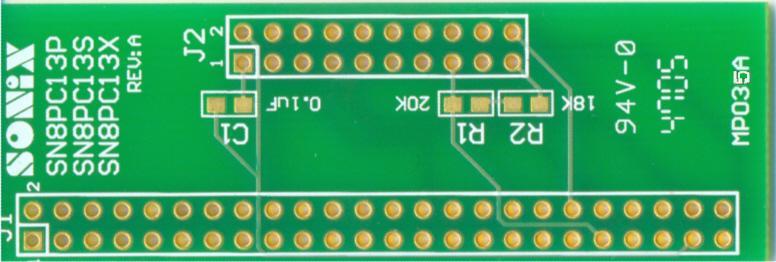

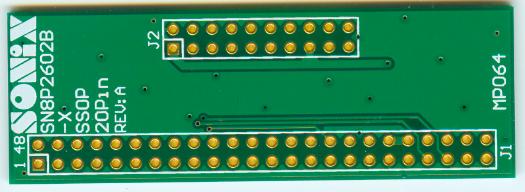

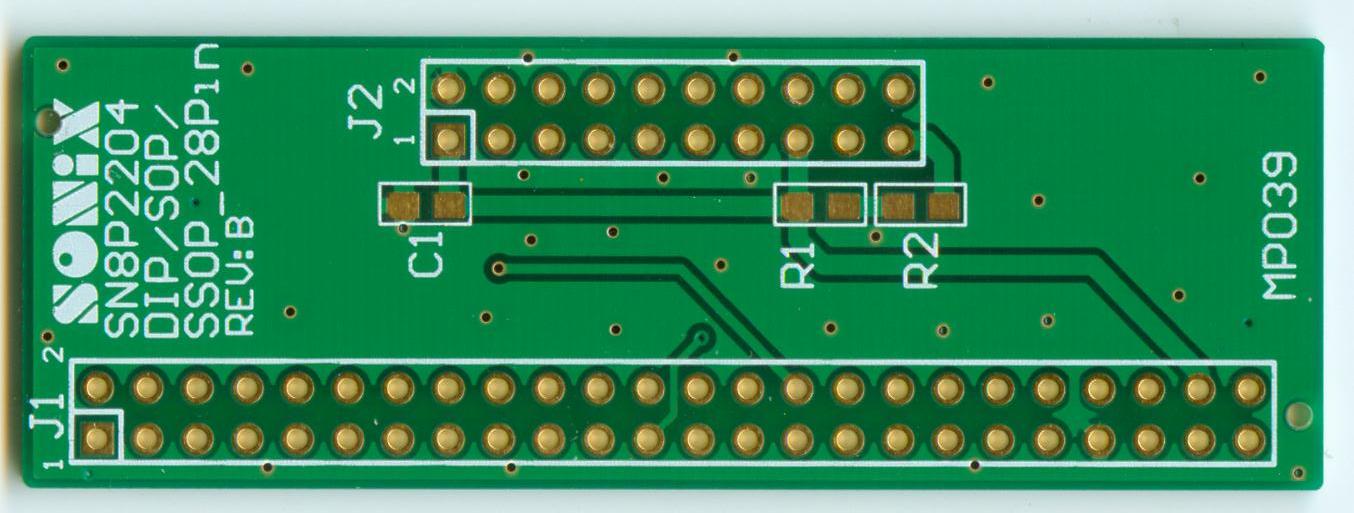

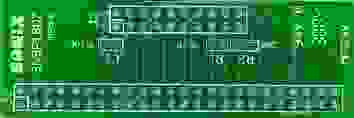

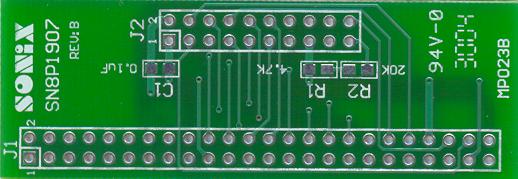

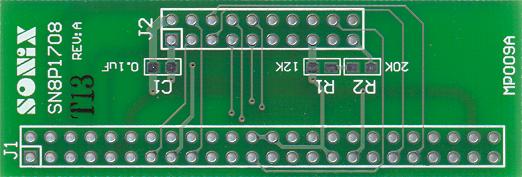

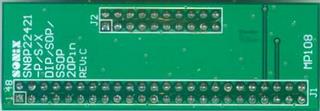

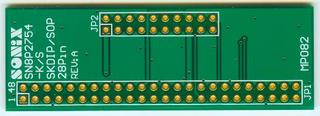

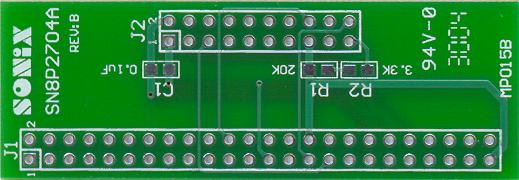

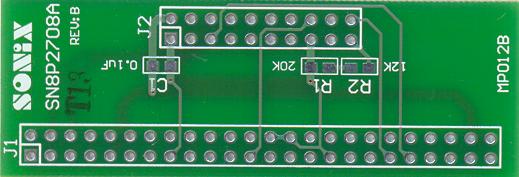

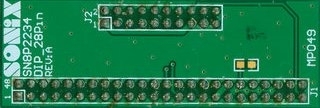

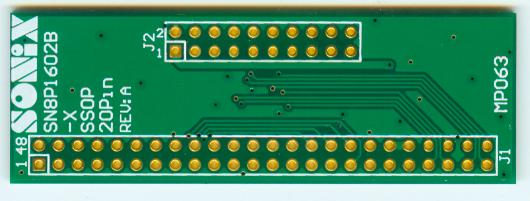

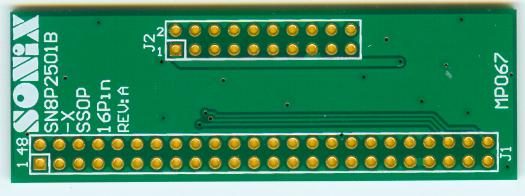

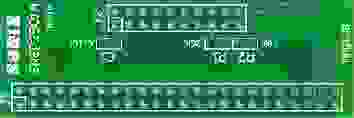

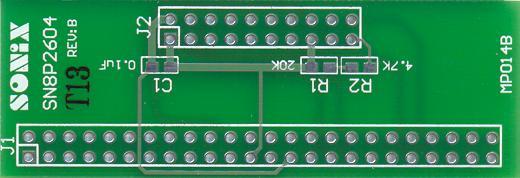

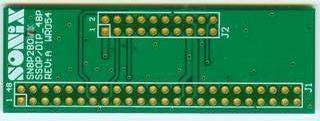

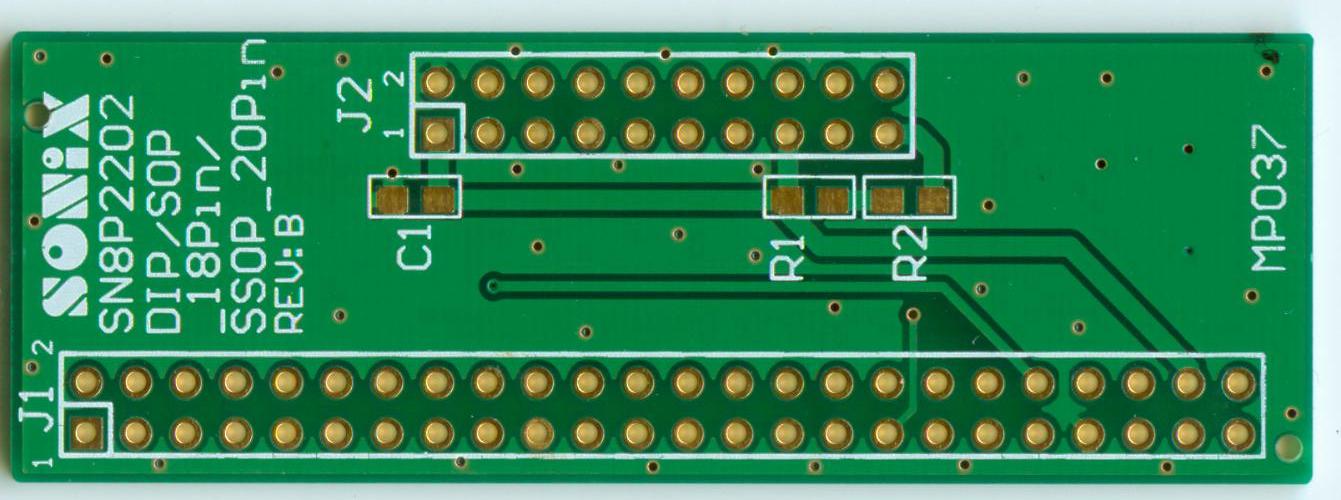

1. Not more than 48pins: If choose EZ Writer or MP Writer, plug the corresponding Writer Transition Board into EZ Writer or MP Writer, then place MCU on the Text Tool of EZ Writer or MP Writer. Now it's ready for programming.
Writer Transition Board and EZ Writer connection diagram：
Writer Transition Board and MP Writer connection diagram：

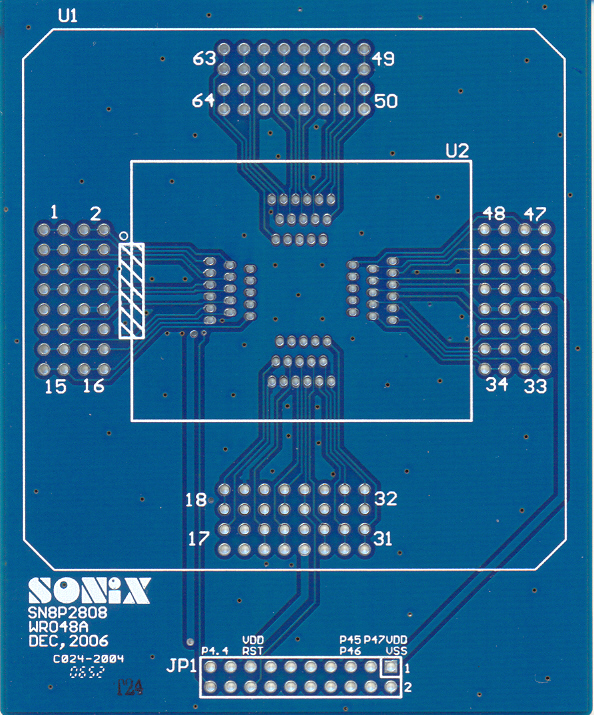

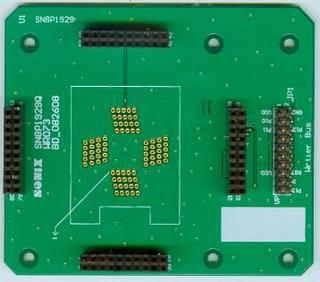

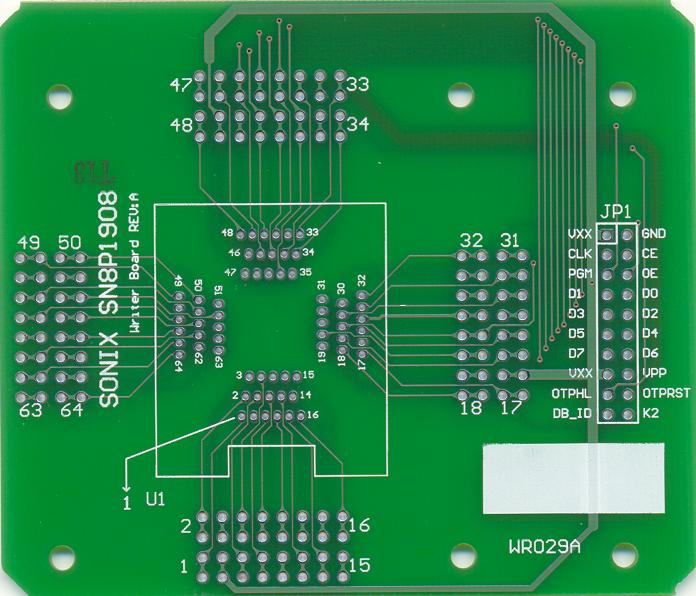

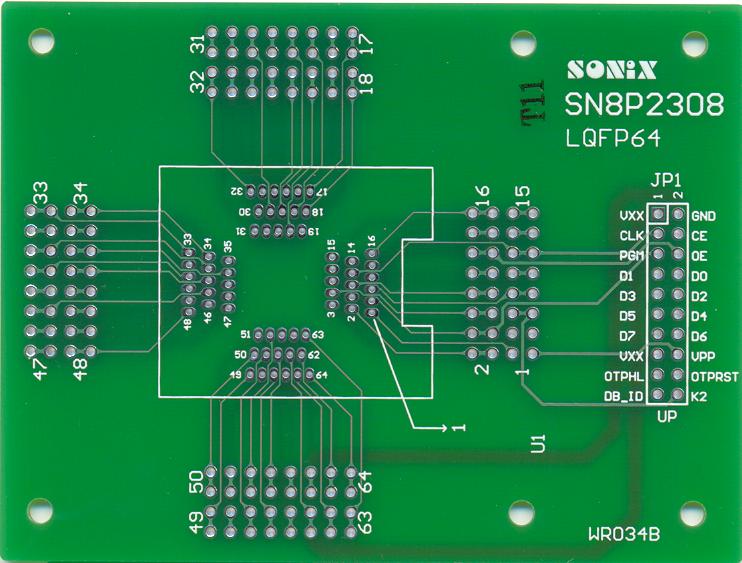

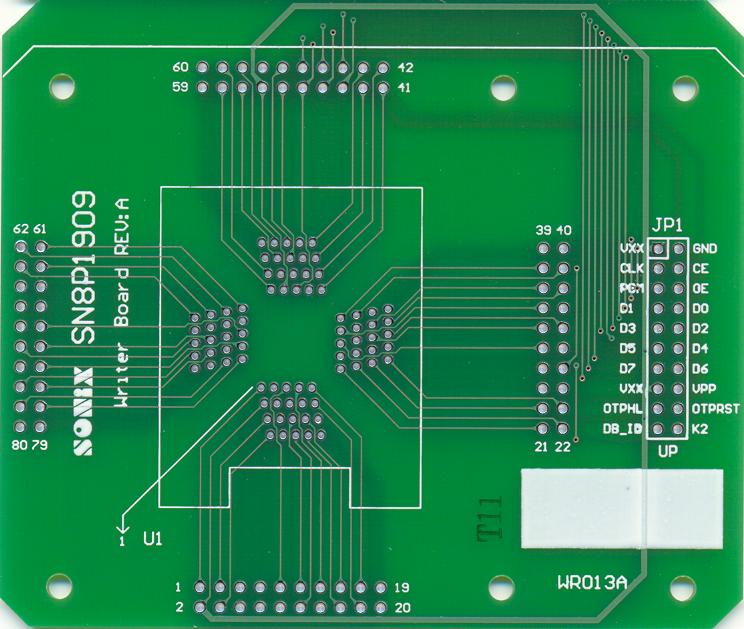

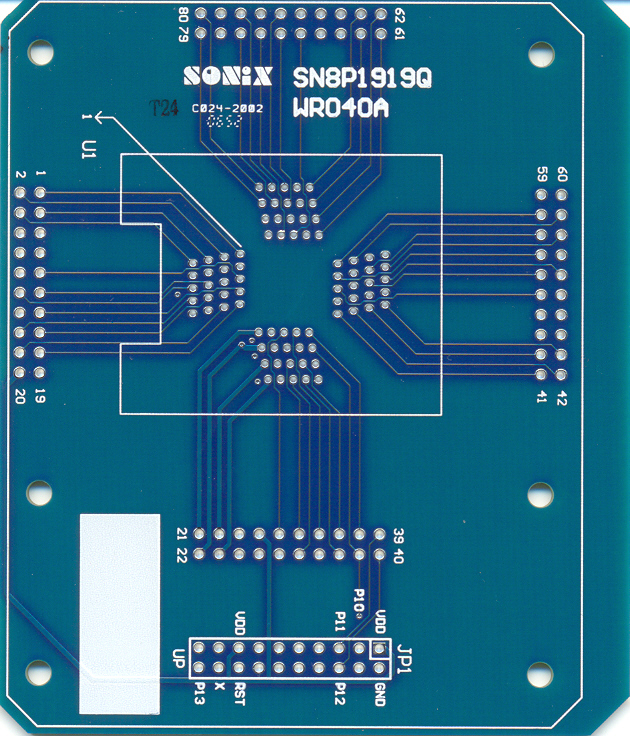

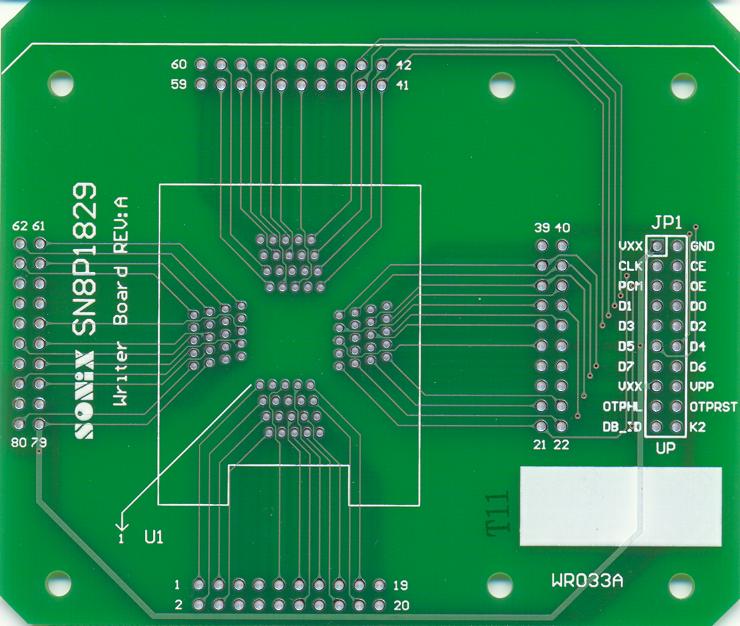

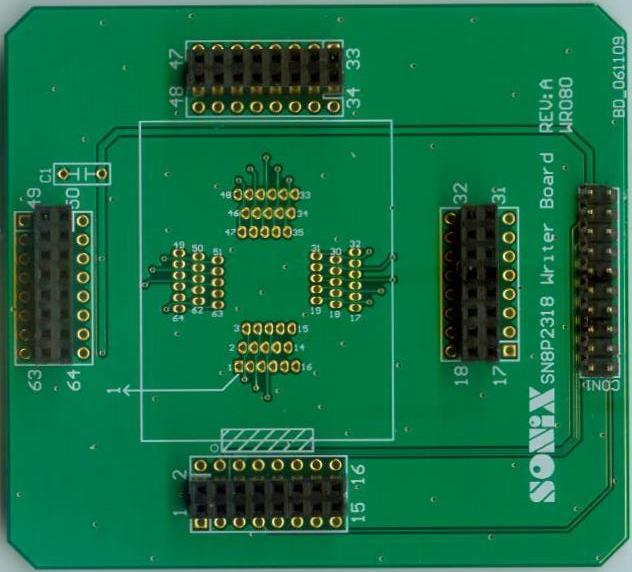

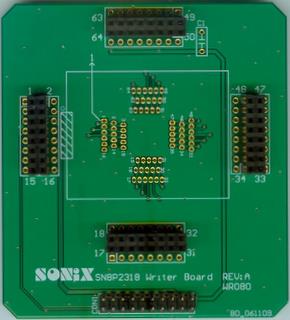

2. More than 48pins: Choose EZ Writer or MP Writer, connect the correct Writer Transition Board with EZ Writer or MP Writer via 20pin parallel cable, and place MCU on the Socket of Writer Transition Board before programming.
Writer Transition Board and EZ Writer connection diagram：
Writer Transition Board and MP Writer connection diagram：
